Lavina Compatible Double Stepped Segment Diamond Grinding Plate
Lavina Compatible Double Stepped Segment Diamond Grinding Plate
Lavina Compatible Double Stepped Segment Diamond Grinding Plate

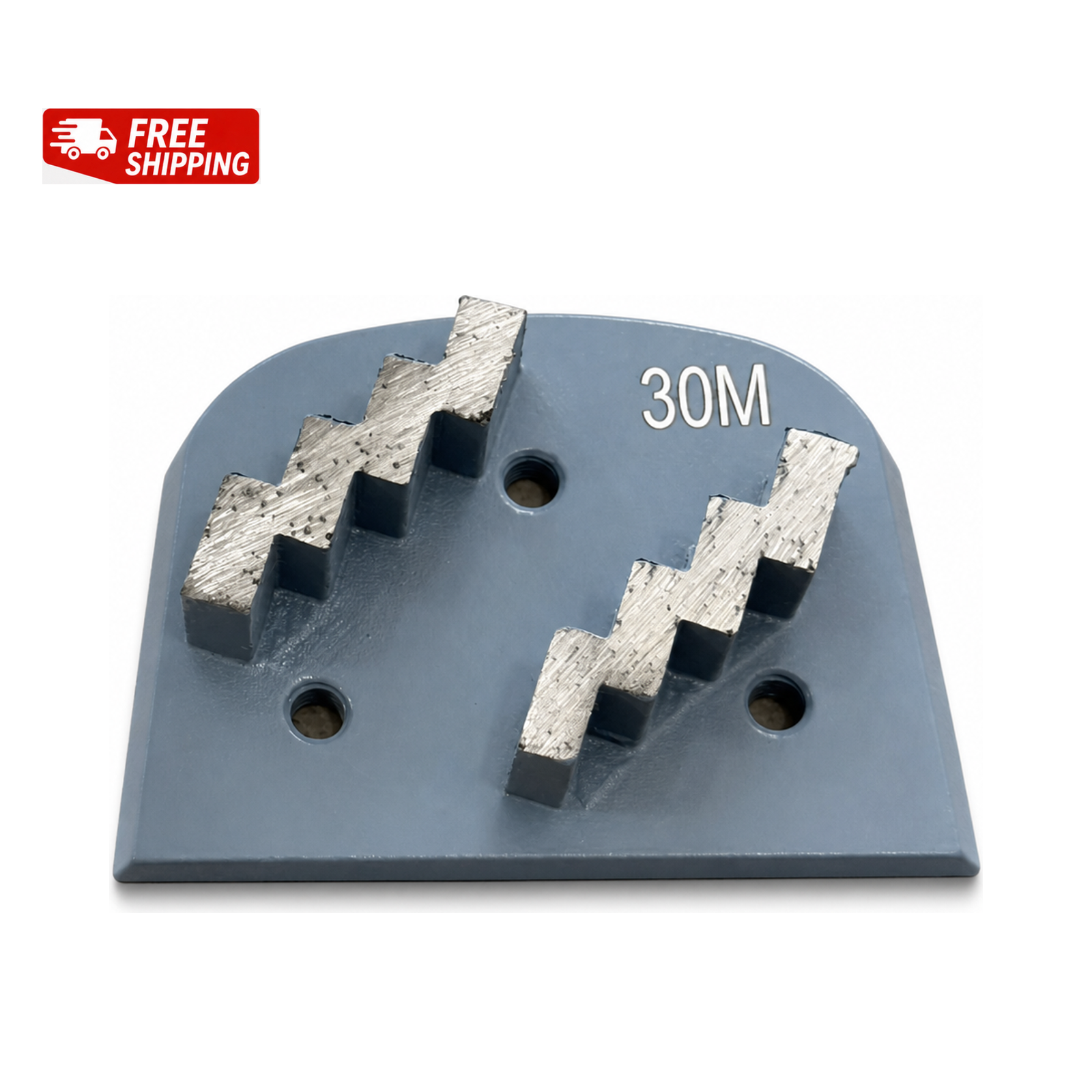

This Lavina-compatible diamond grinding plate has two parallel stepped zigzag diamond segments on a grey-blue rounded-top three-hole plate. The plate has a straight lower edge, tapered side edges and three circular openings in a triangular layout.
Key Features
- Two parallel stepped diamond segments: stepped zigzag segment profiles aligned diagonally across the active face.

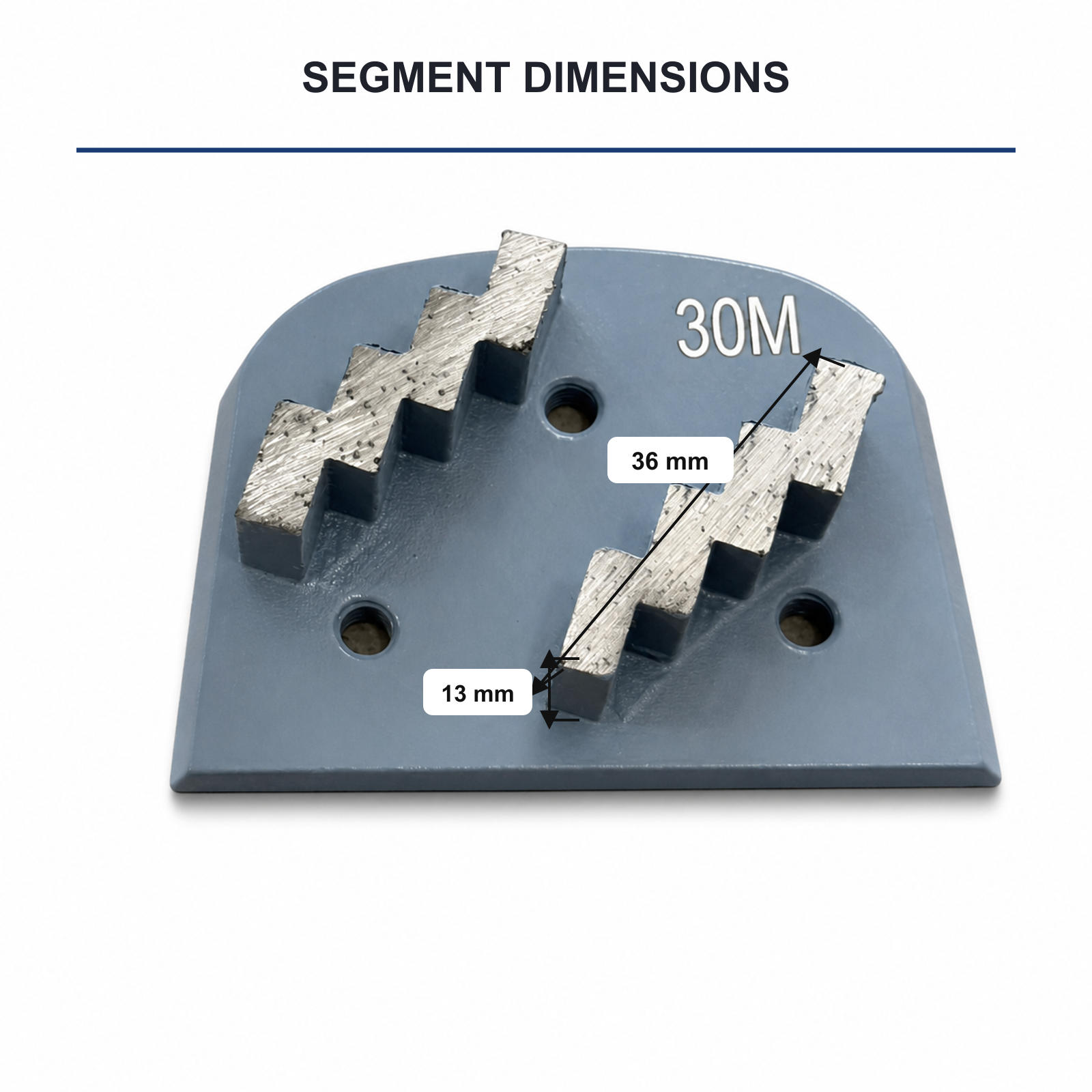

- Confirmed segment dimensions: 36 mm length and 13 mm height/thickness.
- Three-hole Lavina-compatible plate: rounded-top mounting plate with a triangular three-hole layout.
- Durable base: grey-blue manganese-steel base with metallic silver-grey diamond working faces.
Grit & Bond Options
- 16/30 grit: aggressive removal and initial grinding.
- 60/80 grit: intermediate grinding and surface refinement.
- 120 grit: finer preparation before the next tooling stage.
- Soft bond: typically selected for hard concrete; Hard bond: typically selected for soft concrete; Medium bond: a general-purpose option.

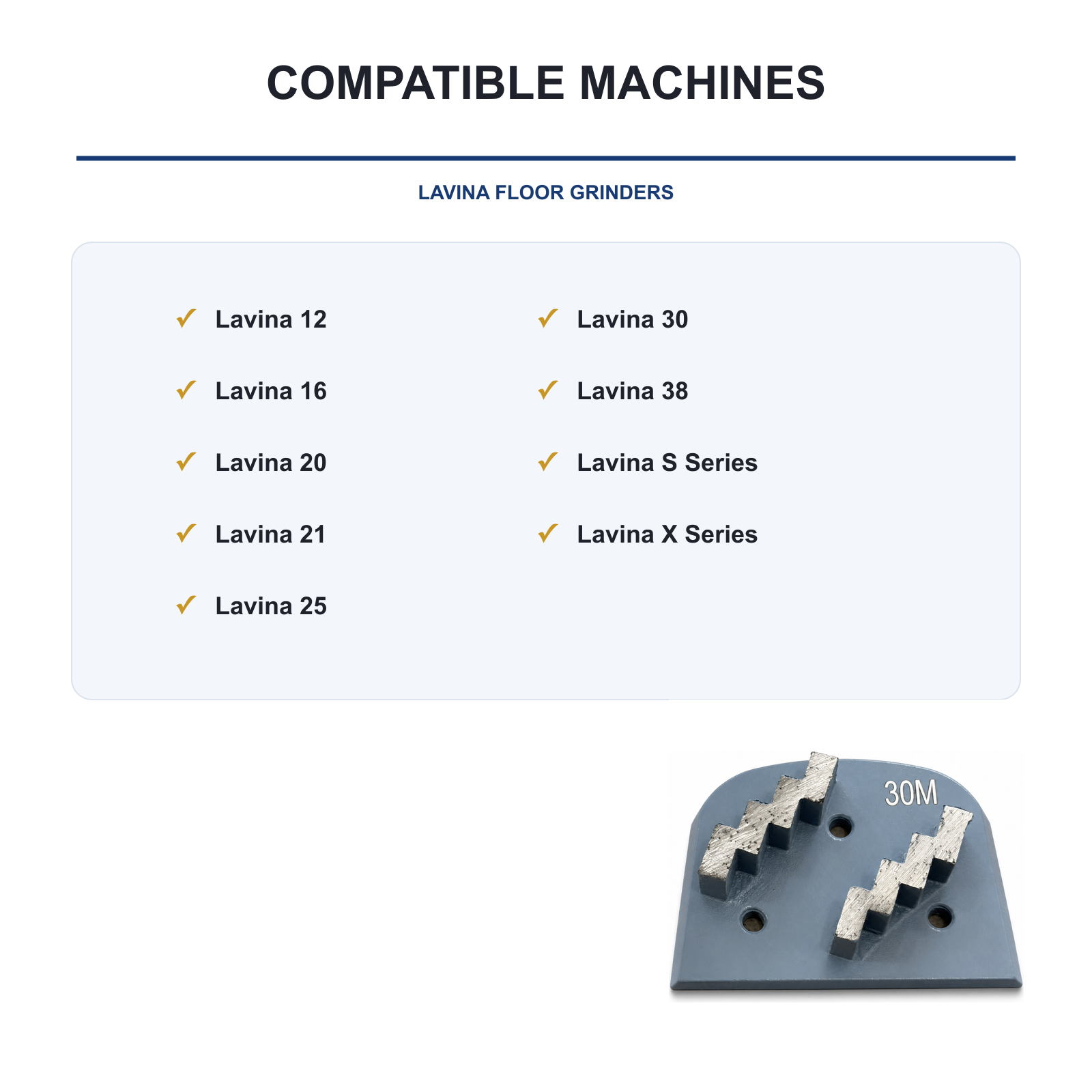

Compatible Machines
Compatible with Lavina 12, Lavina 16, Lavina 20, Lavina 21, Lavina 25, Lavina 30 and Lavina 38 floor grinders, plus Lavina S Series and X Series machines. Confirm your holder interface before ordering.
Fitment Note

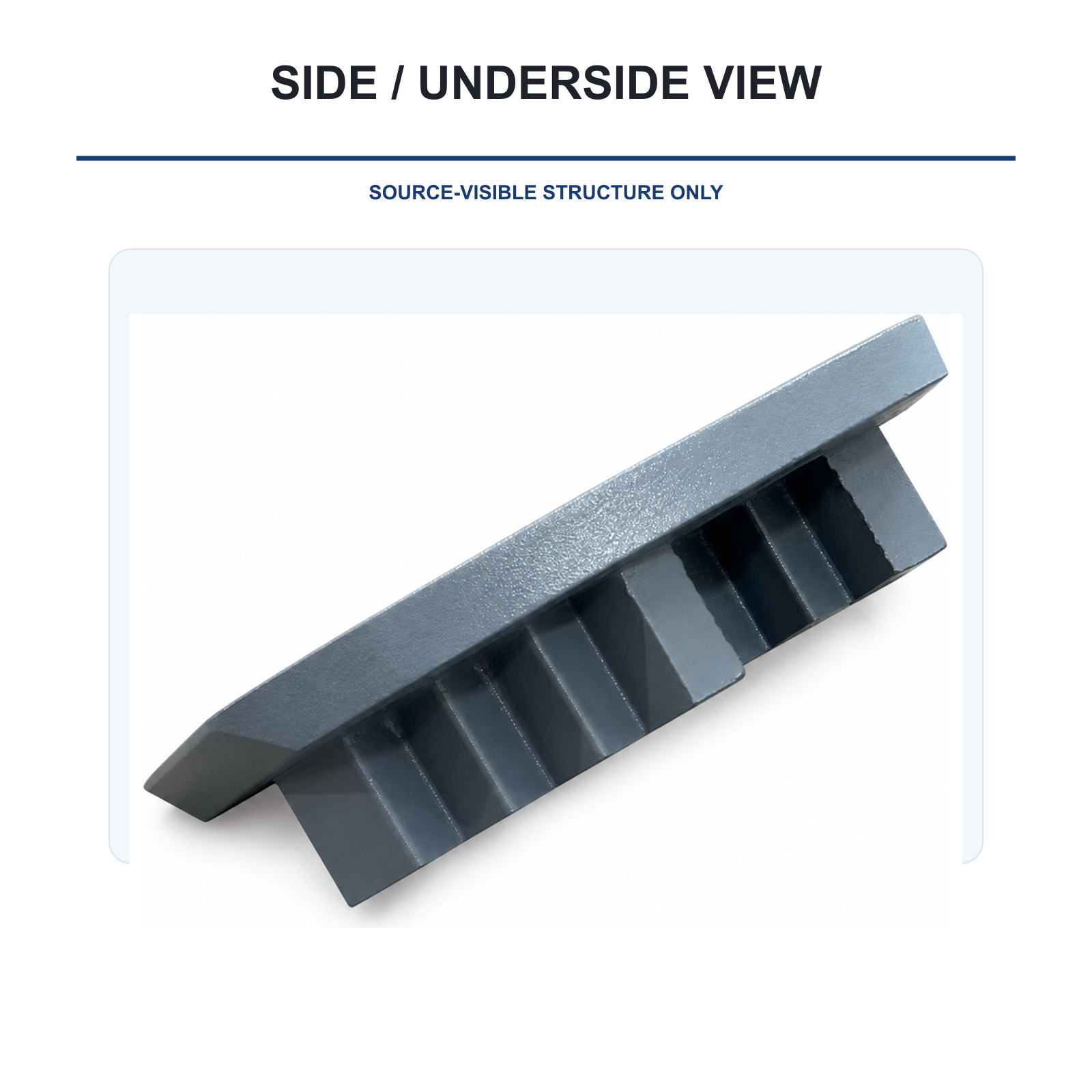

Confirm your holder against the three-hole mounting pattern before purchase. The exact technical interface designation and the function of the underside rib-like protrusions should be verified against your equipment.
Pack Size
Available as 1 Piece or 9 Pieces. For distributor, wholesale or OEM requirements, contact us with your machine and tooling setup details.
