Lavina 3-Segment Diamond Grinding Plate

Lavina Compatible 3-Segment Diamond Grinding Plate

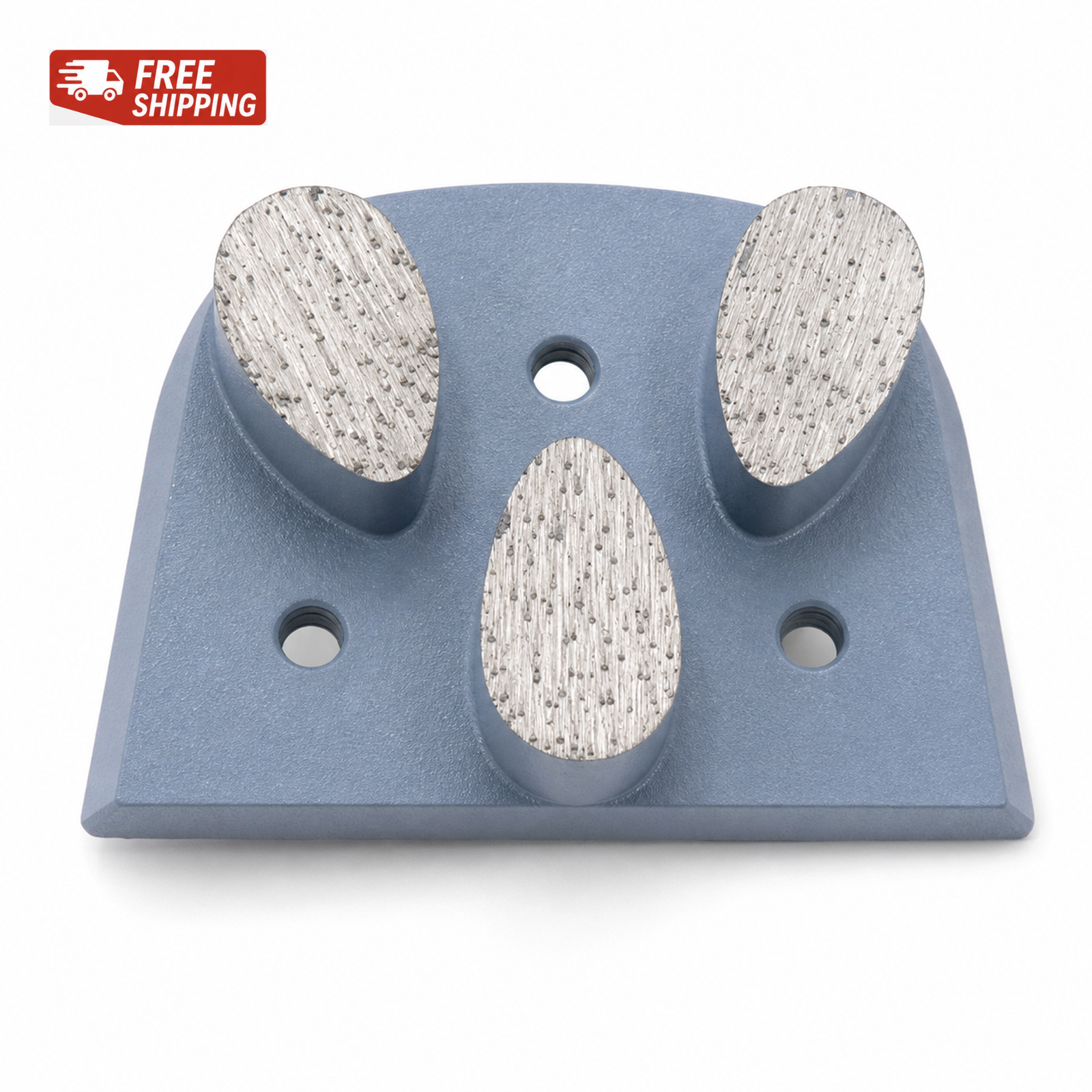

This blue-grey diamond grinding plate features three oval segments arranged in a triangular pattern on a three-hole mounting plate. The rounded-top plate is made with a manganese-steel base and 12 mm thick diamond segments.

Key Features

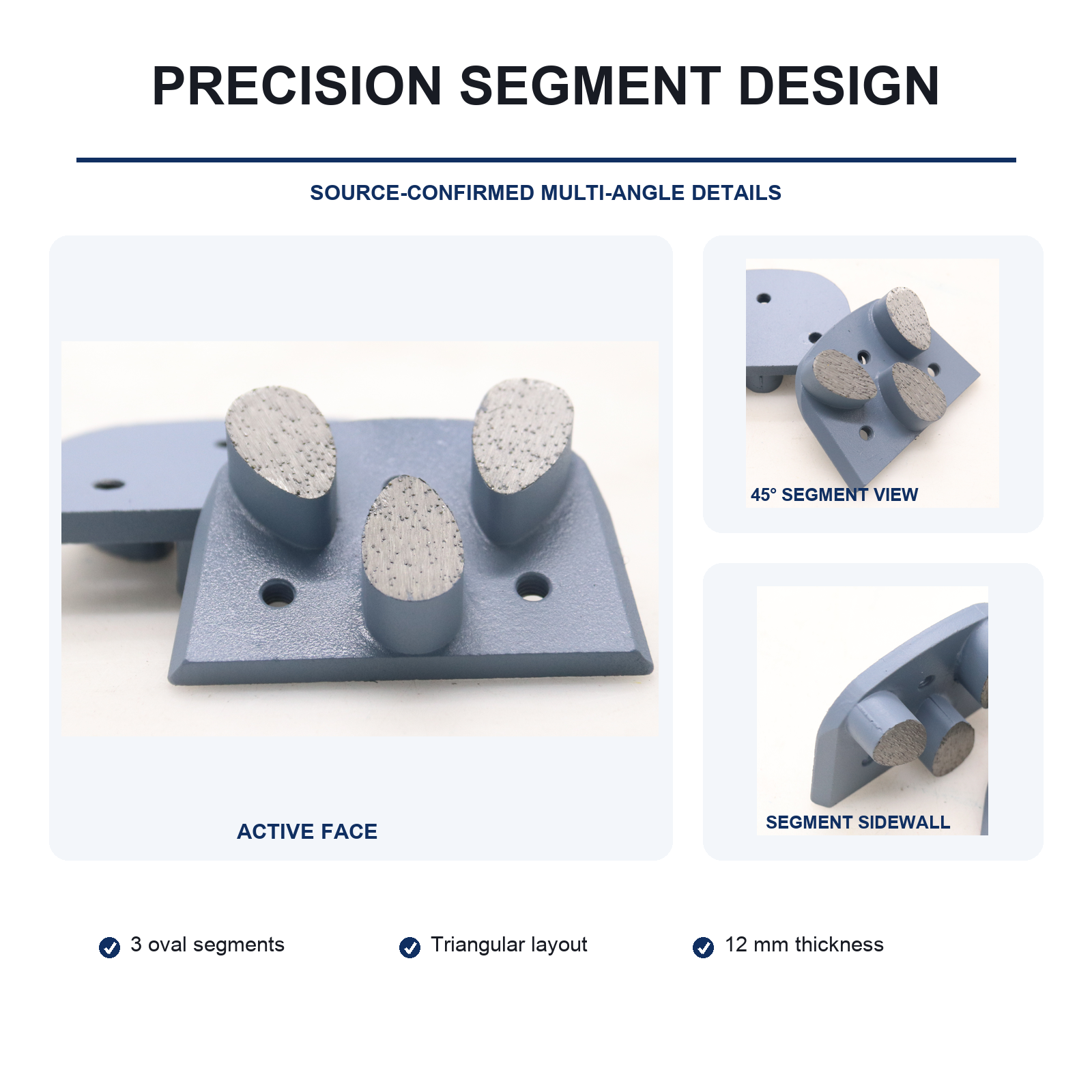

• Three oval diamond segments: arranged in a triangular layout for concrete-floor grinding.

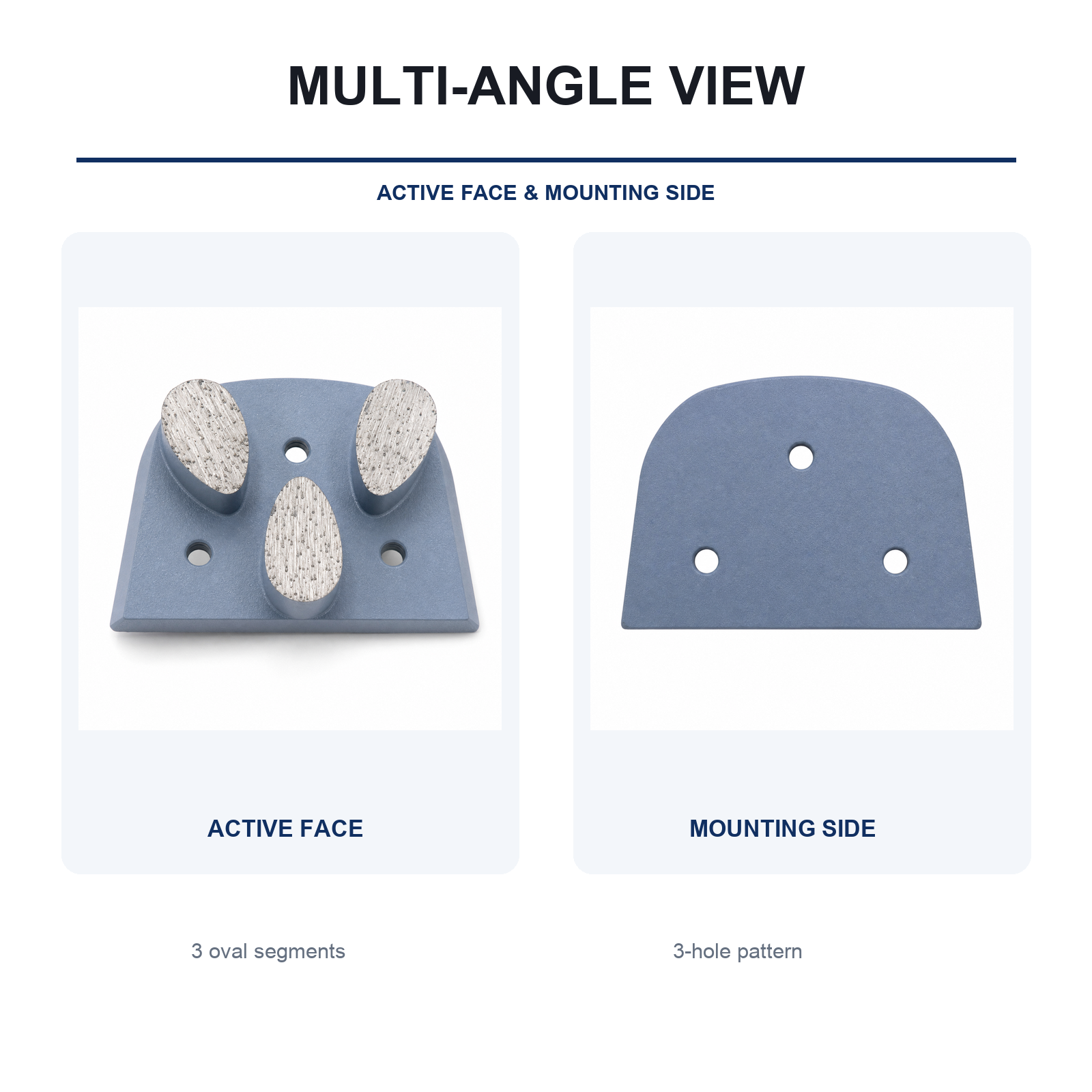

• Three-hole mounting plate: designed for Lavina-compatible tooling setups. Confirm your holder or adapter before ordering.

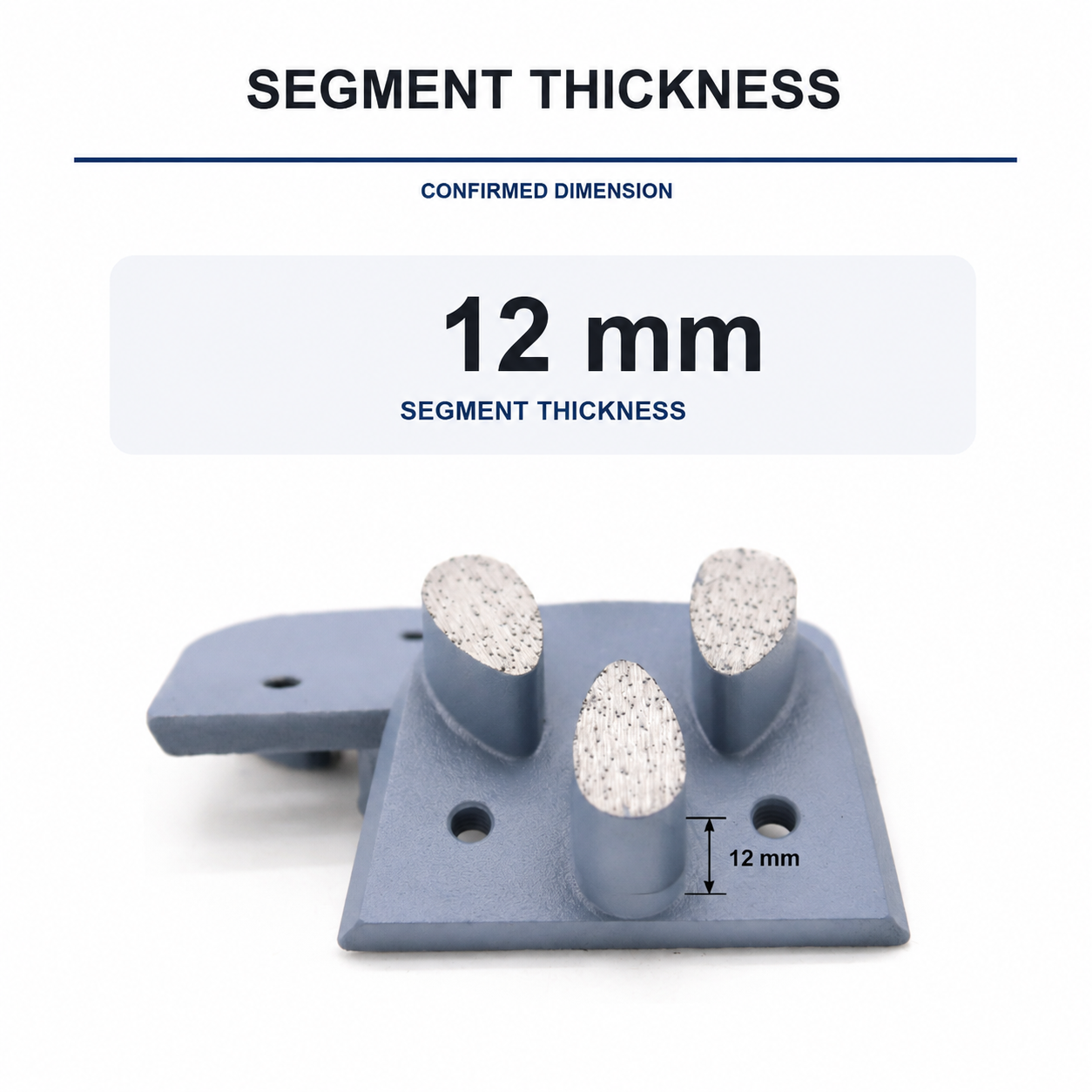

• 12 mm segment thickness: built for demanding floor-preparation work.

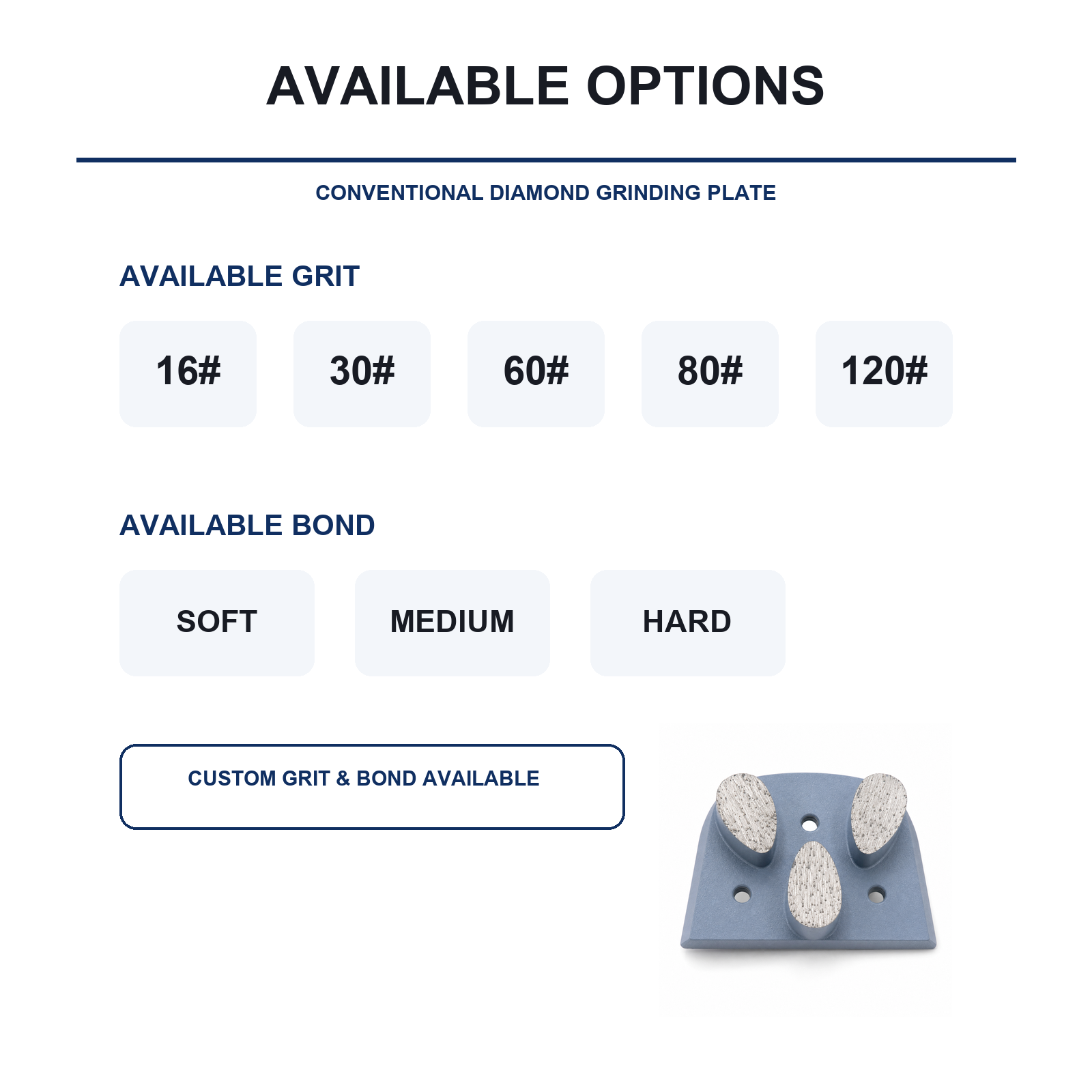

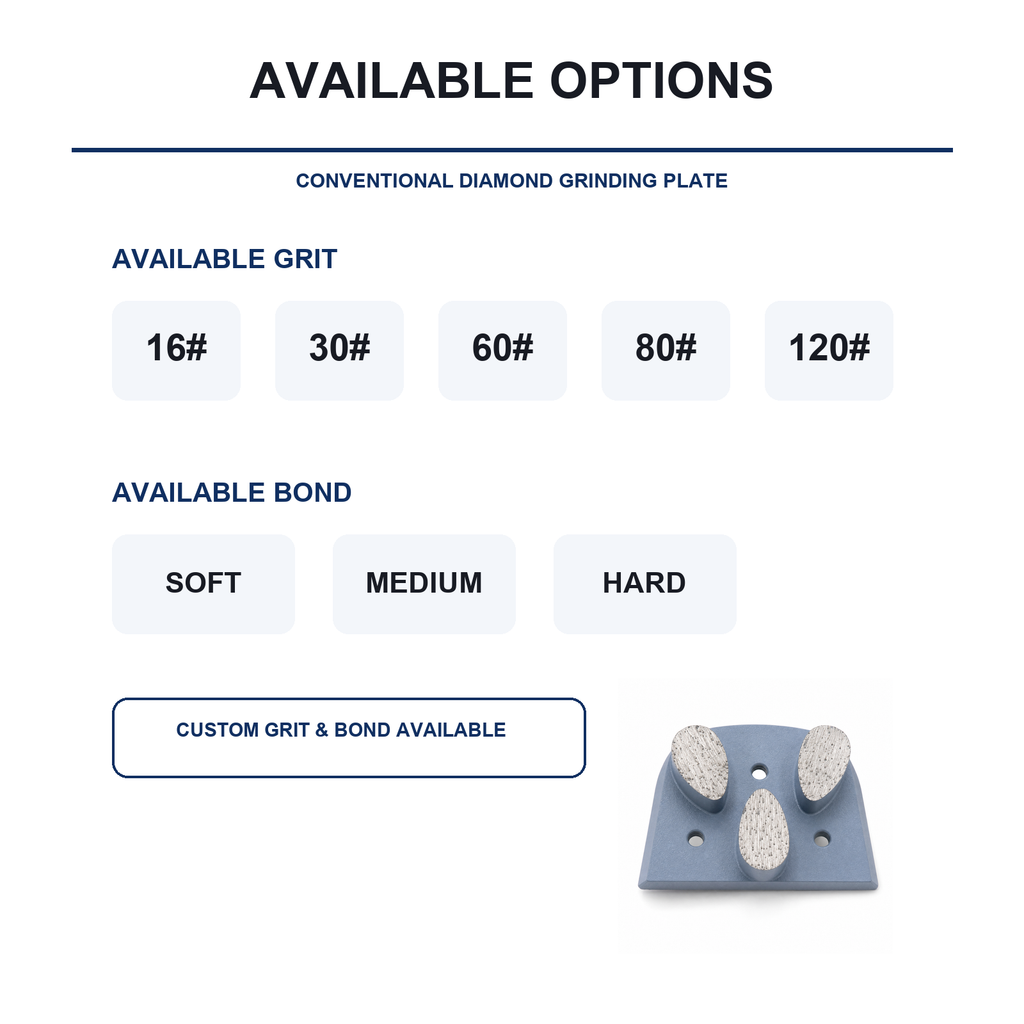

• Configurable: 16, 30, 60, 80 and 120 grit; Soft, Medium and Hard bond options.

Compatible Machines

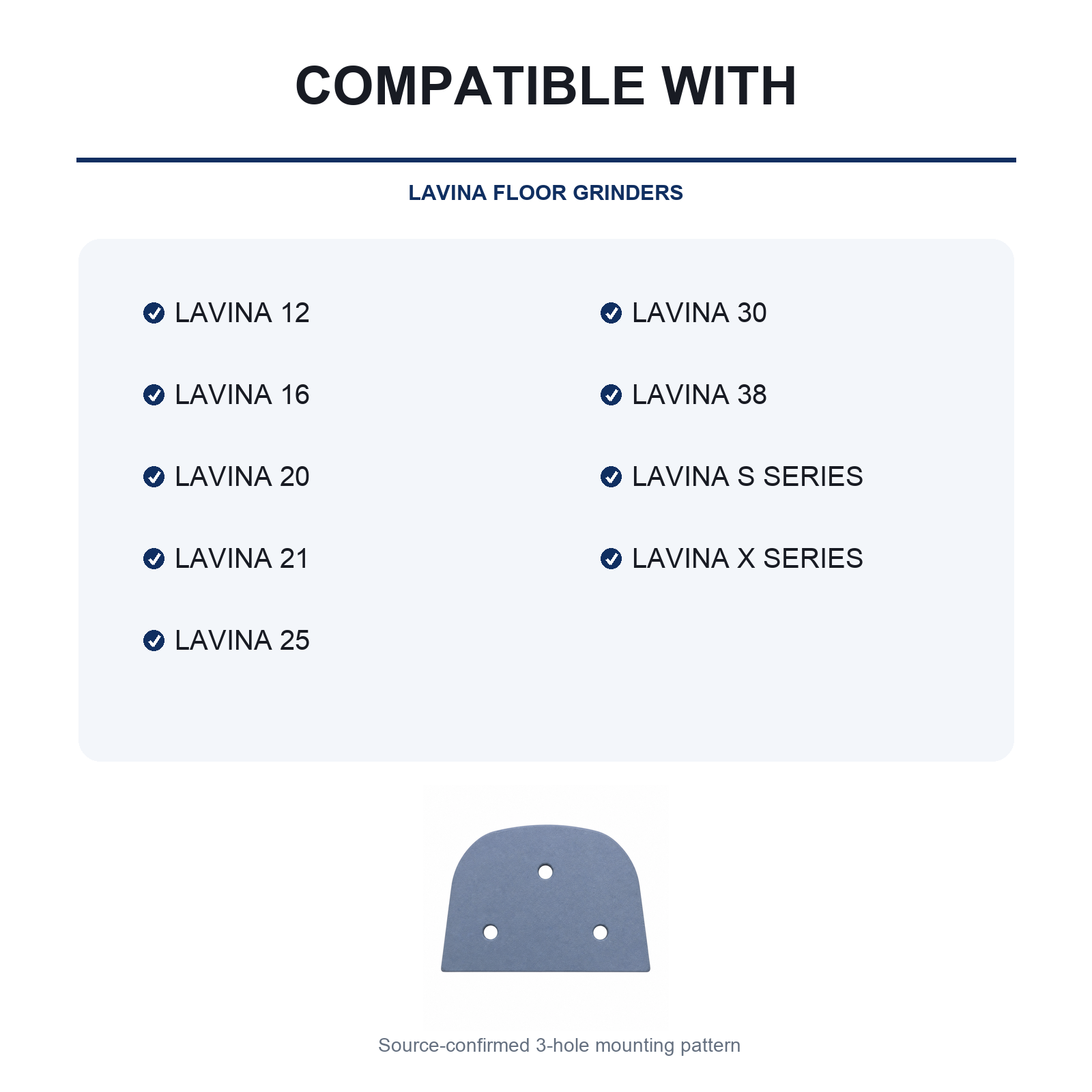

Compatible with Lavina 12, 16, 20, 21, 25, 30 and 38, plus Lavina S Series and X Series machines. This product has a three-hole plate interface; confirm whether your setup requires a direct mount or an adapter.

Applications

Suitable for removal, grinding and polishing work on concrete floors, epoxy floors, quartz and marble. Select the grit and bond according to the floor condition and required finish.

Selection Guide

• 16/30 grit: aggressive material removal and initial grinding.
• 60/80 grit: intermediate grinding and surface refinement.
• 120 grit: finer preparation before subsequent polishing steps.
• Soft bond: typically selected for hard concrete; Hard bond: typically selected for soft concrete; Medium bond: a general-purpose option.

Pack & Customization

Available as 1 Piece or 9 Pieces. Custom grit and bond configurations are available for wholesale and OEM orders.
