Lavina 11-Segment Diamond Grinding Plate

Lavina Compatible 11 Segment Diamond Grinding Plate

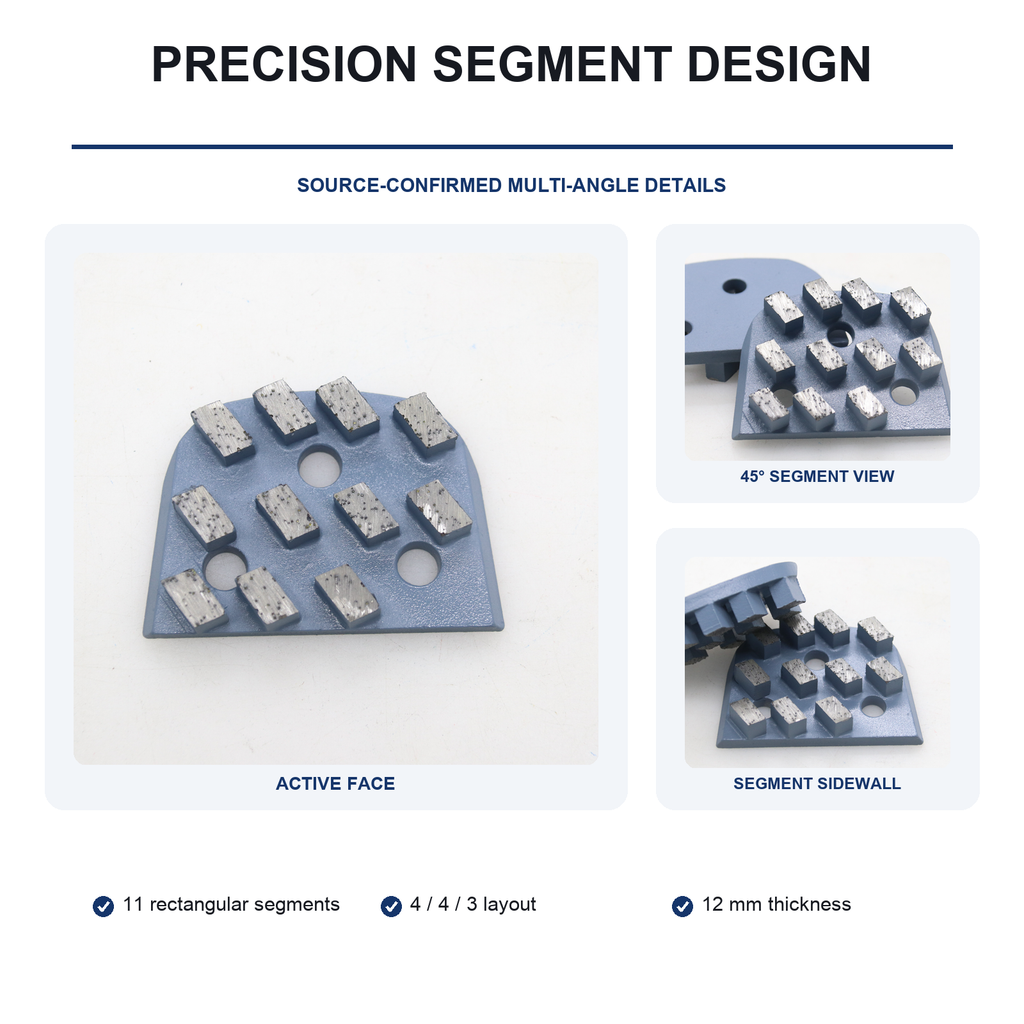

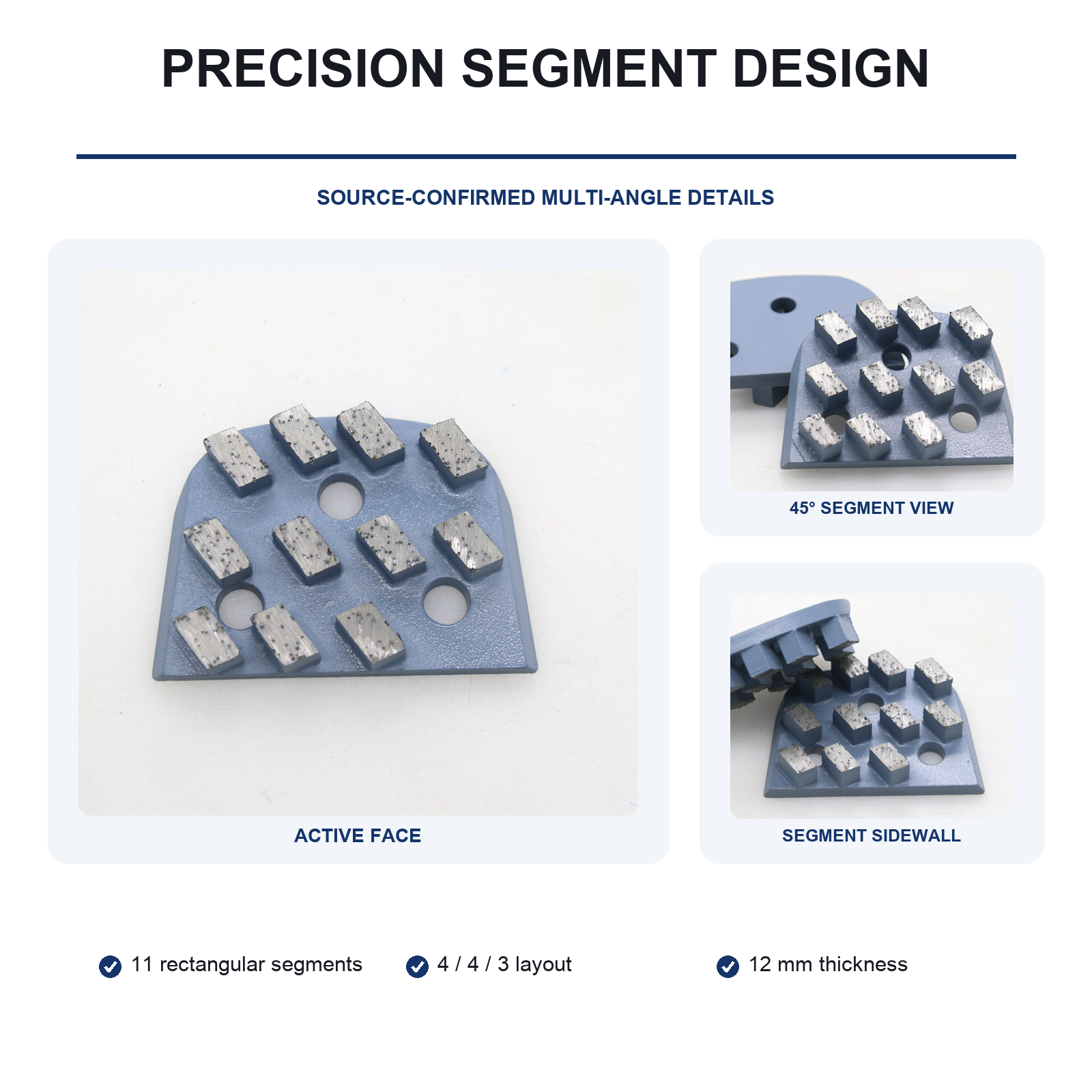

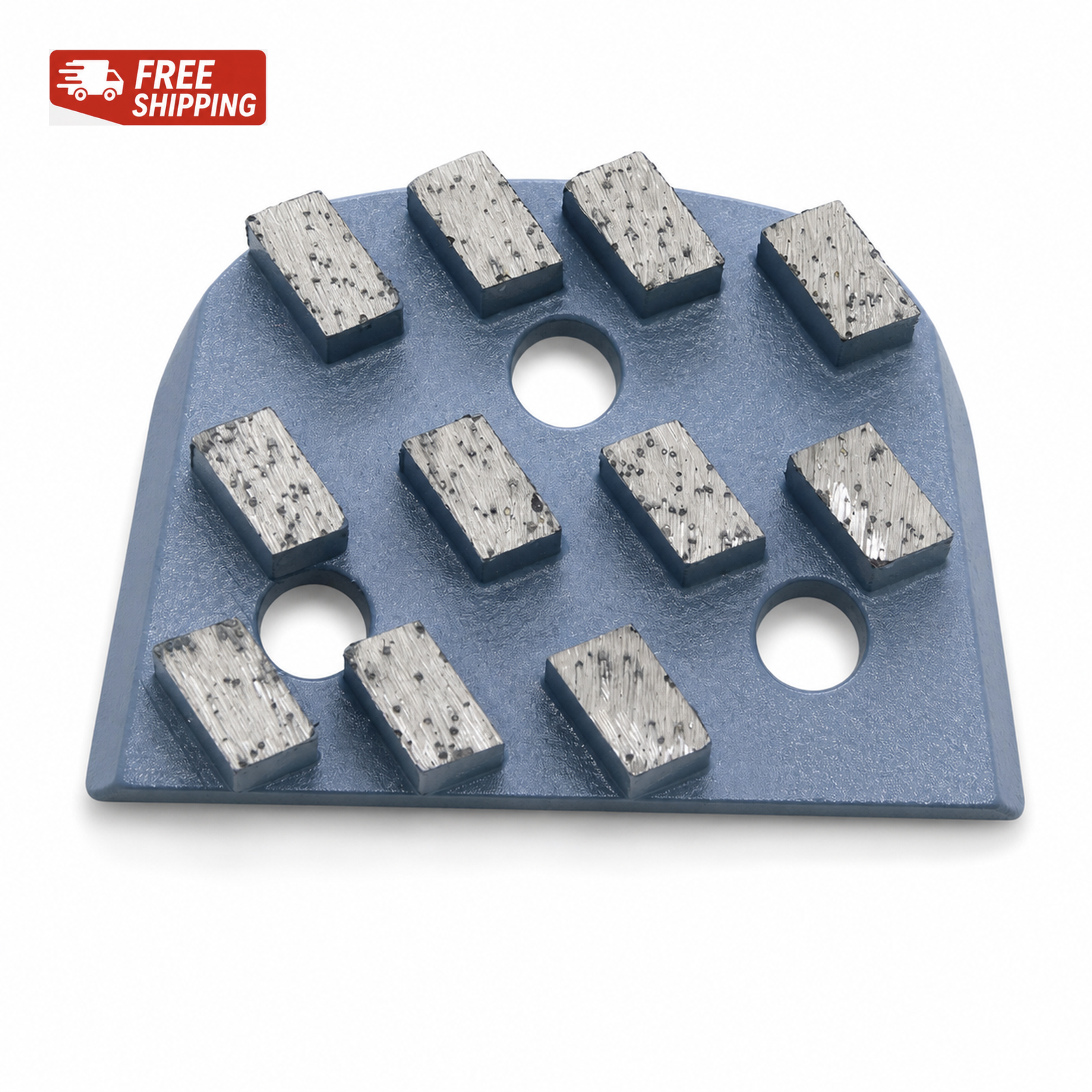

This blue-grey Lavina-compatible diamond grinding plate has 11 rectangular diamond segments arranged in 4/4/3 rows. Its plate has a rounded upper edge, a straight lower edge and sloped sides, with three mounting holes and three source-visible rear mounting tabs.

Key Features

• 11 rectangular diamond segments: lengthwise-aligned segments in a 4/4/3 working pattern.
• Lavina-style three-hole plate: confirm your holder or adapter before ordering, as the exact mounting specification is not stated.
• 12 mm segment thickness: measured from segment surface to base plate.
• Durable base: blue-grey manganese-steel plate with metallic silver diamond working faces.
• Configurable: 16, 30, 60, 80 and 120 grit; Soft, Medium and Hard bond options.

Compatible Machines

Compatible with Lavina 12, 16, 20, 21, 25, 30 and 38, plus Lavina S Series and X Series machines. Please confirm that your holder or adapter matches the three-hole plate before ordering.

Applications

Suitable for removal, grinding and polishing work on concrete floors, epoxy floors, quartz and marble. Select the grit and bond according to the floor condition and required finish.

Selection Guide

• 16/30 grit: aggressive material removal and initial grinding.
• 60/80 grit: intermediate grinding and surface refinement.
• 120 grit: finer preparation before subsequent polishing steps.
• Soft bond: typically selected for hard concrete; Hard bond: typically selected for soft concrete; Medium bond: a general-purpose option.

Pack & Customization

Available as 1 Piece or 9 Pieces. Custom grit and bond configurations are available for wholesale and OEM orders.
