Husqvarna Redi Lock Double Notched Bar Metal Bond Diamond Grinding Tool

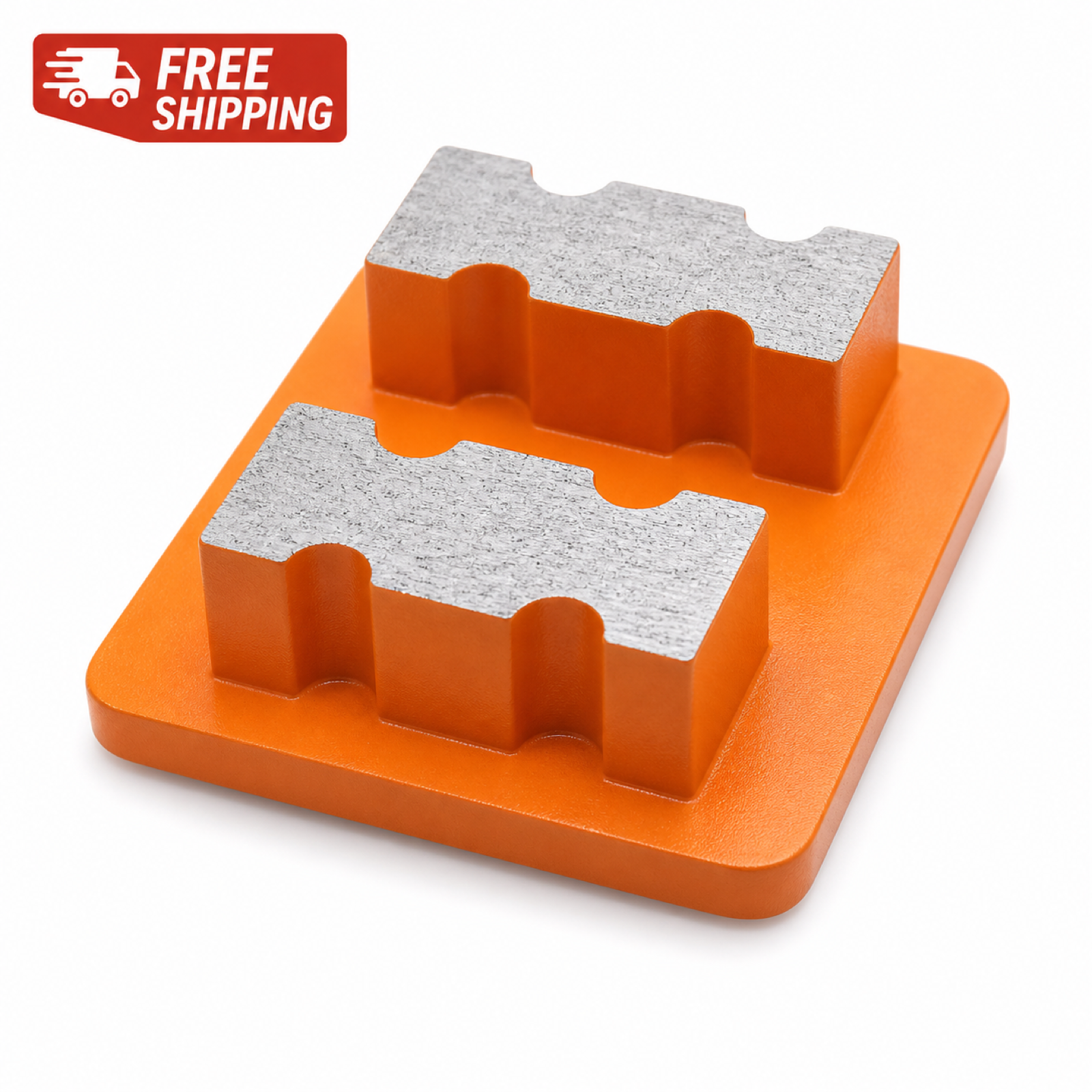

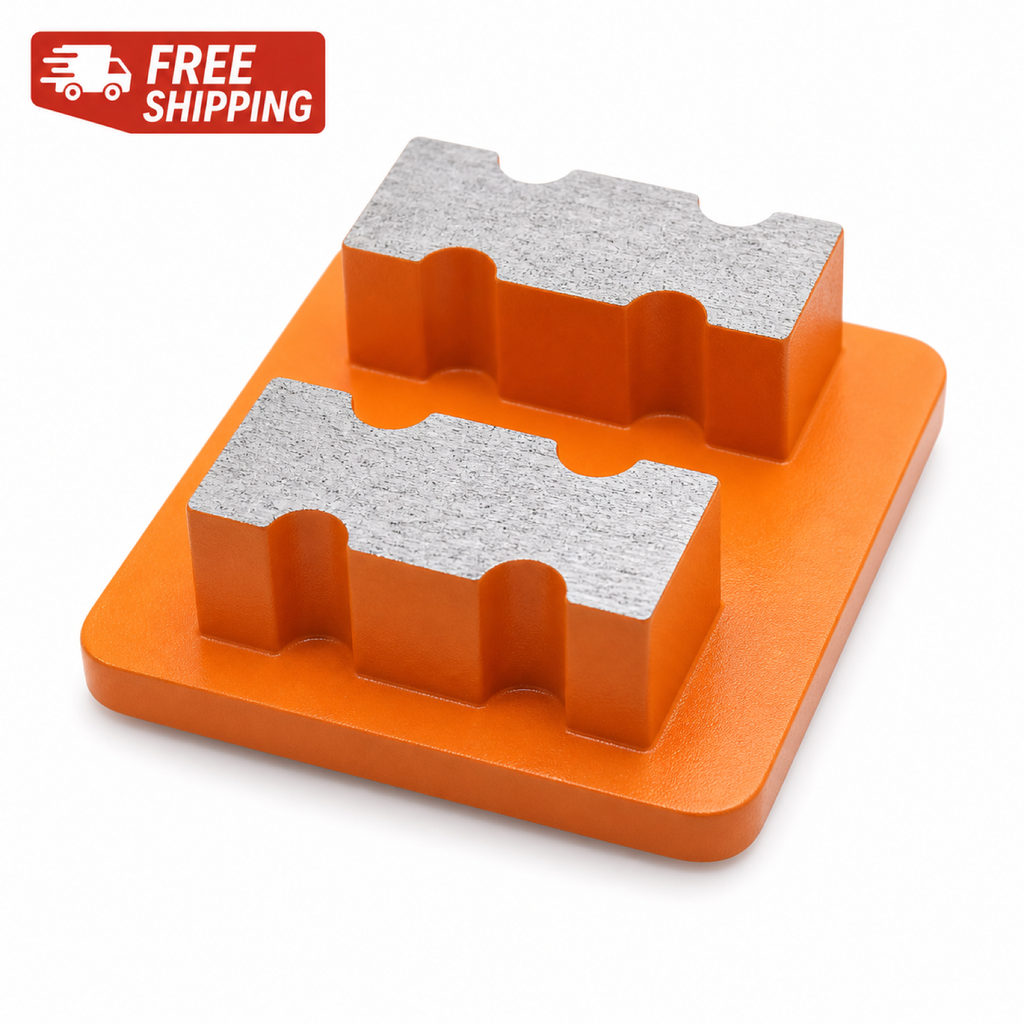

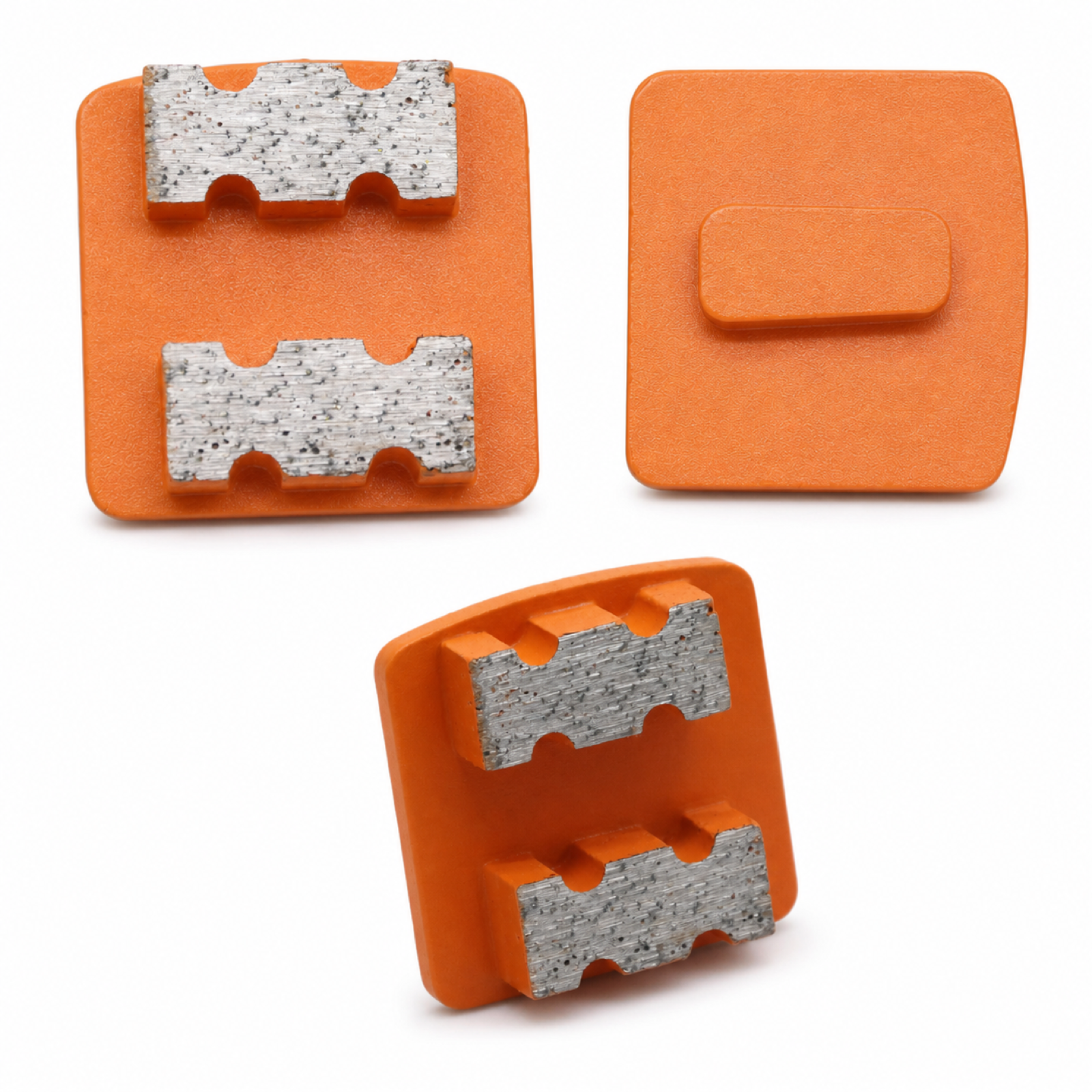

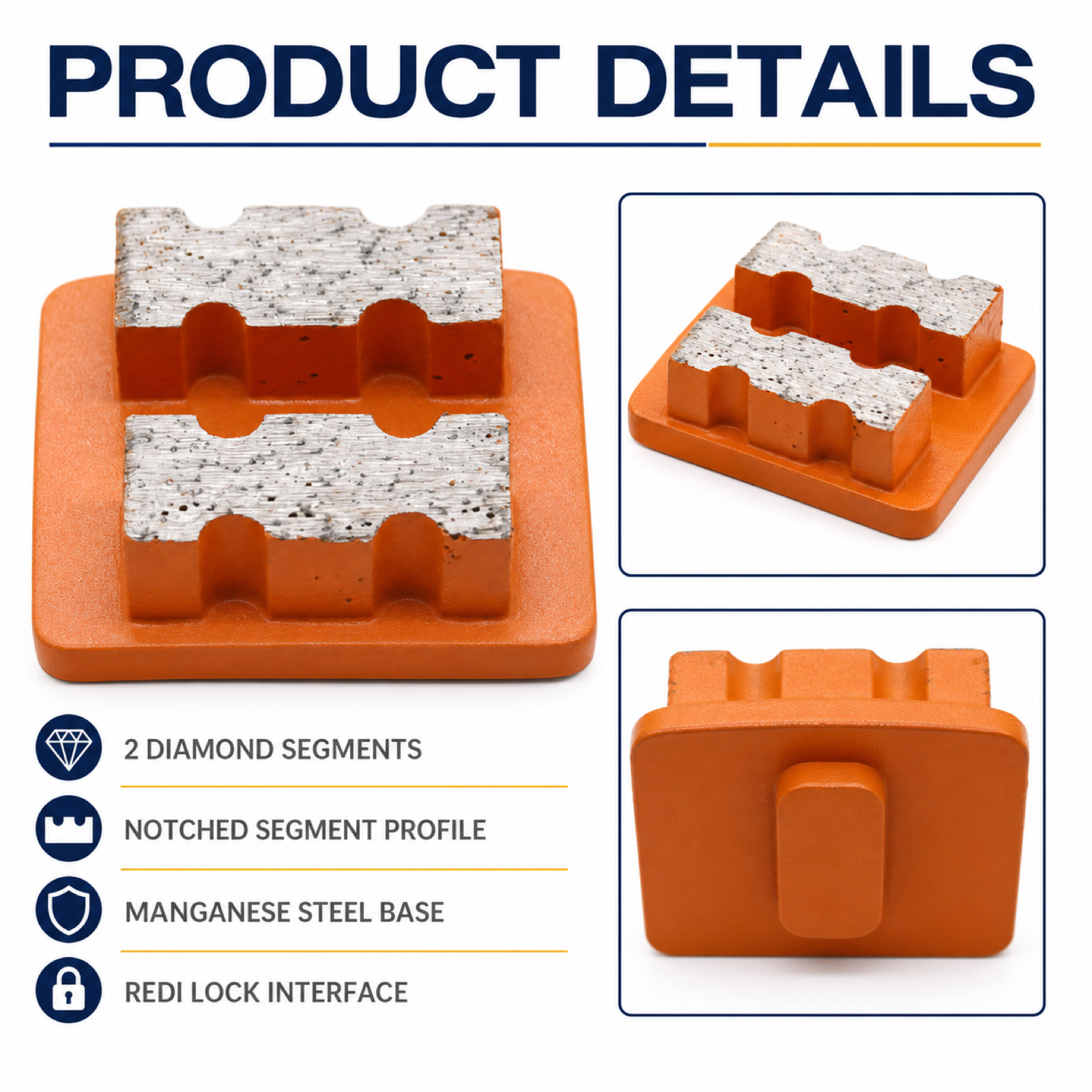

This Husqvarna Redi Lock diamond grinding tool uses two parallel rectangular notched-bar metal-bond diamond segments on an orange rounded plate. Each segment has two semicircular relief notches along its long edge. The rear face has one centered raised mounting lug for the Redi Lock quick-change system.
Key Features
- Two parallel notched-bar segments: rectangular diamond segments with source-visible relief notches.
- Redi Lock interface: quick-change rear mounting lug for compatible Husqvarna tooling systems.

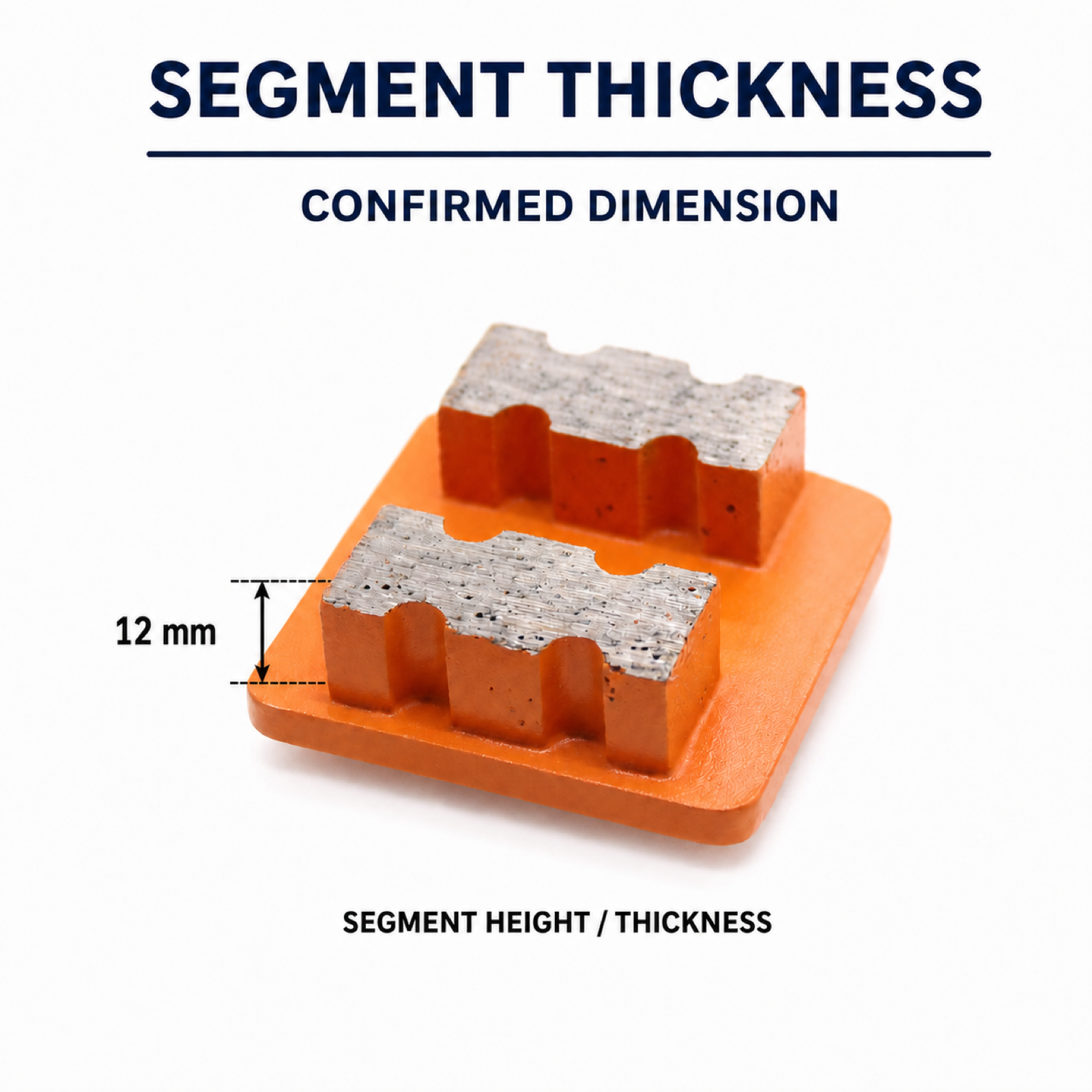

- 12 mm segment height: measured from the working face to the base plate.
- Durable base: orange manganese-steel base with metallic silver-grey segment working faces.

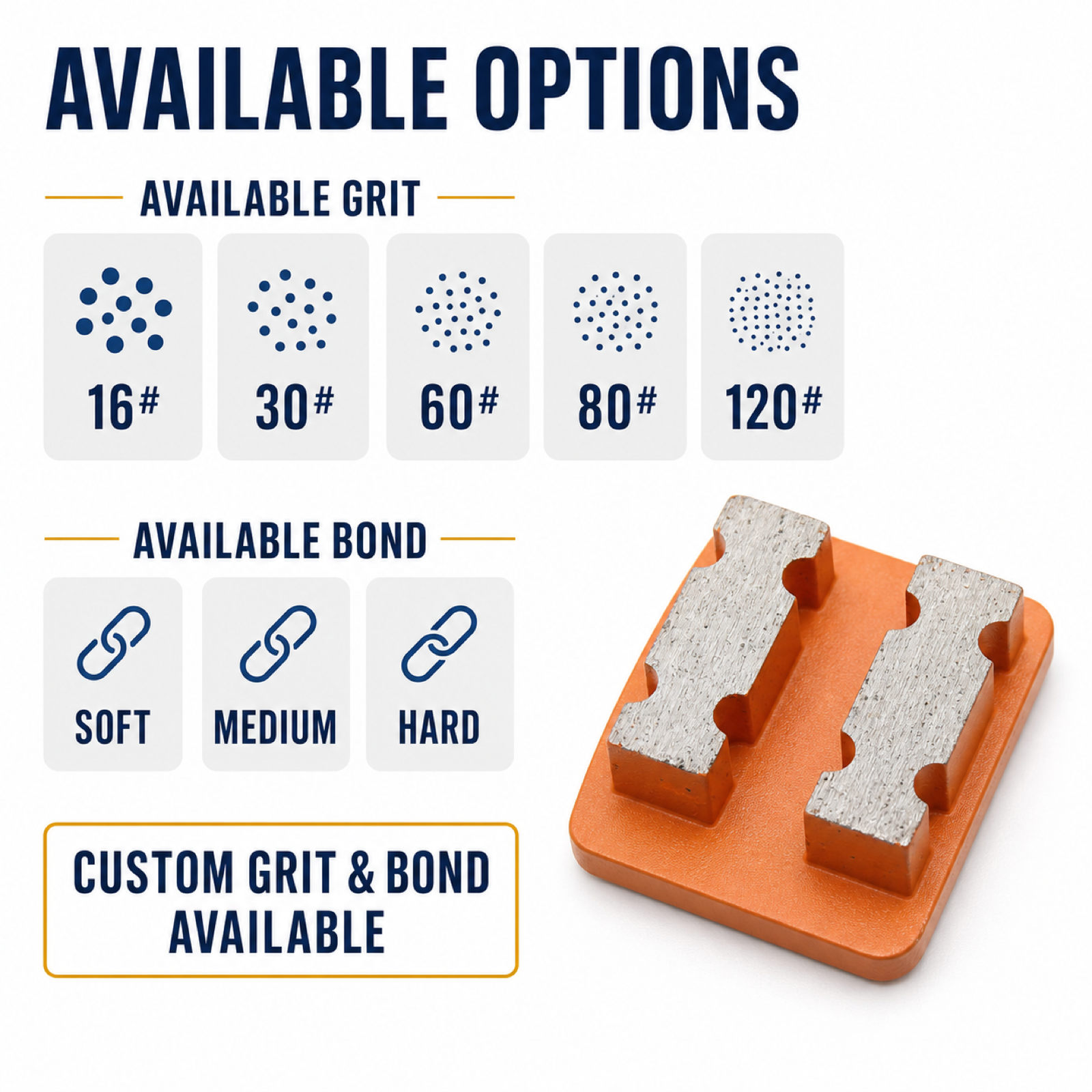

- Configurable: 16, 30, 60, 80 and 120 grit; Soft, Medium and Hard bond options.
Compatible Machines

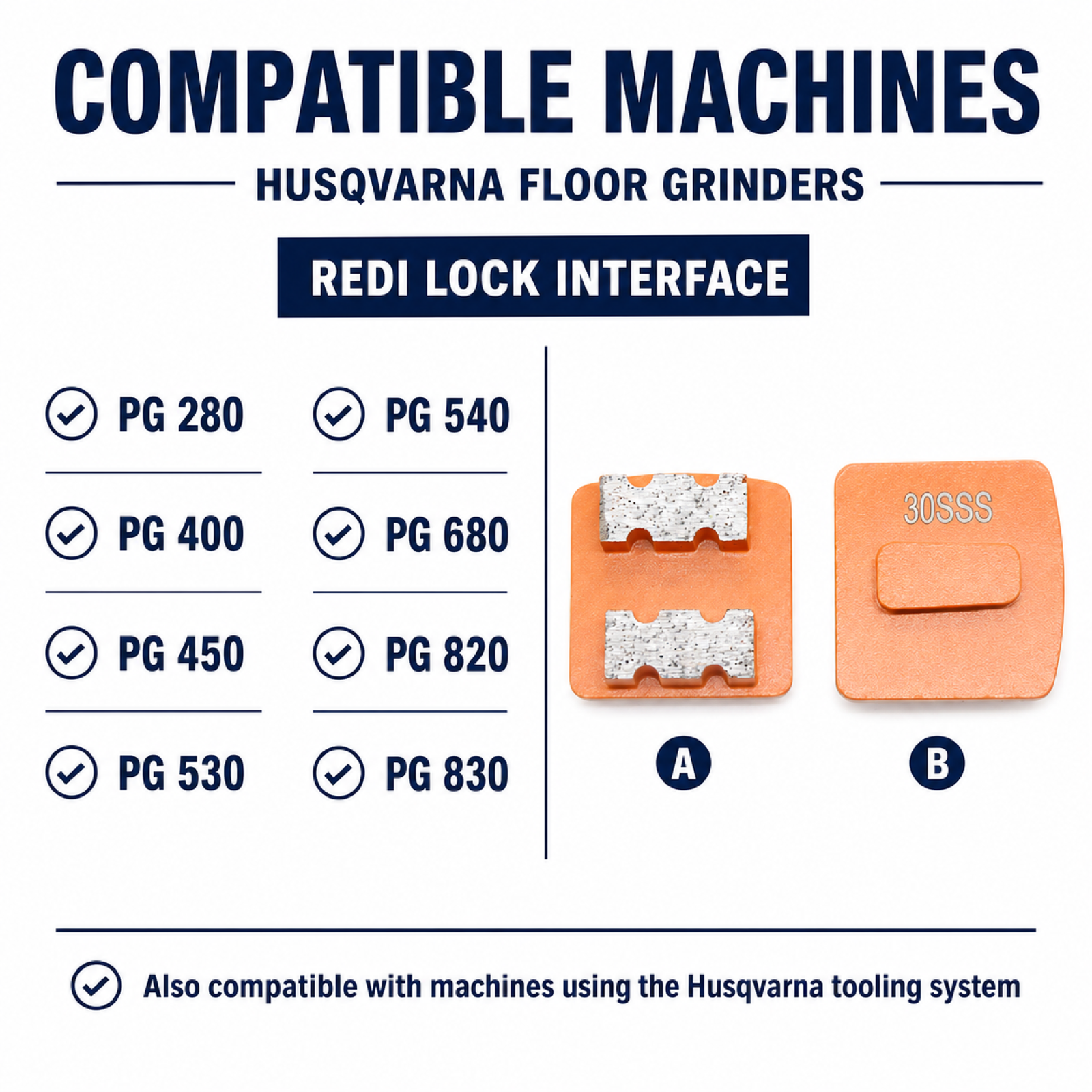

Compatible with Husqvarna PG 280, PG 400, PG 450, PG 530, PG 540, PG 680, PG 820 and PG 830 floor grinders, plus compatible machines using the Redi Lock quick-change system. Confirm your machine's tooling system before ordering.
Applications
Suitable for removal, grinding and polishing work on concrete floors, epoxy floors, quartz and marble. Select the grit and bond according to the floor condition and required finish.
Selection Guide
- 16/30 grit: aggressive material removal and initial grinding.
- 60/80 grit: intermediate grinding and surface refinement.
- 120 grit: finer preparation before subsequent polishing steps.
- Soft bond: typically selected for hard concrete; Hard bond: typically selected for soft concrete; Medium bond: a general-purpose option.
Pack & Customization
Available as 1 Piece or 9 Pieces. Custom grit and bond configurations are available for wholesale and OEM orders.
